12V/24V DC Parking Air Conditioner | 20CC Compressor with Fan & Motor Optional-DR3

This 12V/24V DC battery-powered parking air conditioner is a professional parking cooling system designed for trucks, semi-trailers, RVs, vans and engineering vehicles. Equipped with a standard 20CC compressor, oversized aluminum condenser and evaporator fans, the unit supports multiple optional configurations including rotor/scroll compressors and brushed/brush-less fan motors. With standardized rated power, graded cooling capacity and optimized low-noise structure, it delivers stable, efficient and long-lasting cab cooling for long-haul transportation, overnight parking and outdoor working scenarios.

1. 20CC Compressor Optional (Scroll / Rotor)
The air conditioner is equipped with a universal 20CC displacement compressor, providing two types of compressors for optional selection. The rotor compressor features stable basic performance and high cost performance, fully meeting daily conventional cooling demands. The upgraded scroll compressor adopts optimized compression structure with higher operational stability, lower vibration and stronger continuous load capacity.It maintains reliable performance during prolonged continuous operation, suited for high-temperature and bumpy working conditions.

2. Precise Graded Power & Cooling Capacity
Matching mainstream commercial vehicle voltage systems, this DC parking AC adopts standardized power and cooling configuration with clear graded performance. The 12V version features rated power of 300W-800W and cooling capacity of 1800W-2000W, suitable for medium and small-sized vehicle cabs. The 24V version provides rated power of 500W-850W and cooling capacity of 2000W-3000W, offering stronger and faster cooling effect for heavy-duty trucks and large engineering vehicles, achieving efficient cooling with low energy consumption.

3. Oversized Aluminum Condenser for Efficient Heat Dissipation
This unit adopts an oversized aluminum condenser as standard configuration. The enlarged heat dissipation area effectively improves heat exchange efficiency and reduces system load. The aluminum material features light weight, good thermal conductivity and reliable corrosion resistance, ensuring stable heat dissipation performance even in high-temperature, dusty and harsh road conditions, avoiding high-temperature attenuation of cooling capacity and improving overall operational stability.

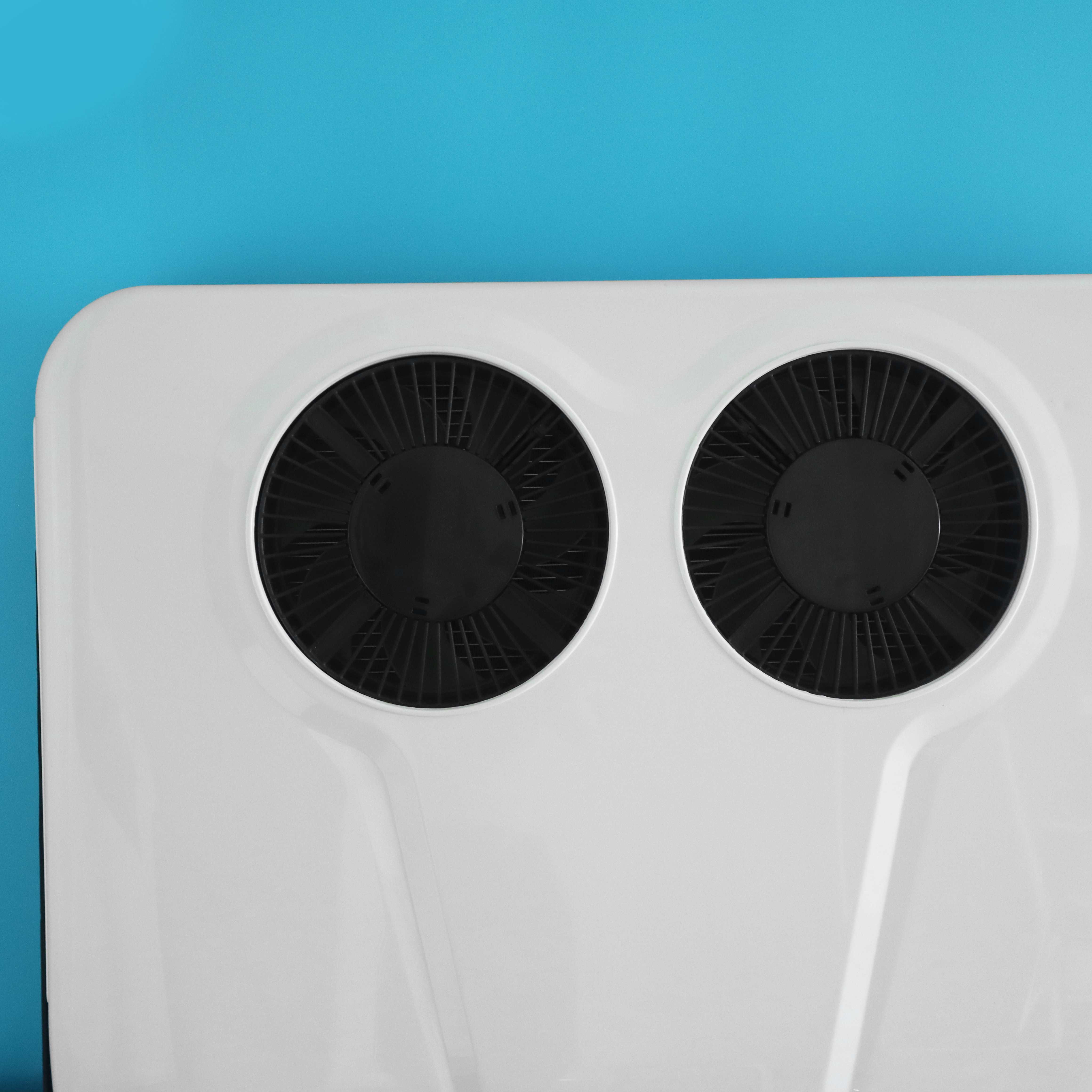

4. Evaporator Fans with Brushed / brush-less Motor Optional
Built with evaporator fans to realize uniform air output and rapid indoor circulation. The fan motor supports brushed and brush-less options. The brushed motor is cost-effective with stable basic operation. The upgraded brush-less motor eliminates carbon brush friction loss, featuring lower power consumption, lower heat generation and longer service life, reducing daily maintenance frequency and failure risks.

5. Stable 50-60dB Ultra-Low Noise Operation
Optimized with integral shock absorption structure and balanced fan operation design, the overall operating noise of this parking air conditioner is controlled at 50-60 decibels. Compared with ordinary models, it effectively reduces mechanical vibration and wind noise during operation. The low-noise working state guarantees a quiet and comfortable rest environment for drivers during long-distance driving and overnight parking.

1. Graded High-Efficiency Cooling & Low Energy Consumption
This air conditioner adopts voltage-matched cooling parameters to balance cooling capacity and power consumption. The 12V version provides 1800W-2000W cooling capacity with 300W-800W rated power. The 24V version provides 2000W-3000W cooling capacity with 500W-850W rated power. It reduces battery load and supports long-time continuous cooling for commercial vehicles.

2. 20CC Compressor Configuration for Full Working Condition Adaptation
It is equipped with a standard 20CC displacement compressor with two optional types: rotor and scroll. The rotor compressor meets regular daily cooling needs. The scroll compressor features low vibration and strong overload resistance, maintaining stable cooling output under high temperature and bumpy road conditions.

3. Upgraded Heat Dissipation & -Fan Variable Motor System
The oversized aluminum condenser increases heat dissipation area and improves heat exchange efficiency, with stable performance in high-temperature and dusty environments. evaporator fans realize fast and even air circulation. Fan motors support brushed and brush-less options. brush-less motors lower operating heat and failure rate, and extend equipment service life.

4. Optimized Structural Design for Low-Noise & Stable parking Operation
Integrated shock-absorbing structure controls operating noise within 50-60dB. The unit adopts pure DC battery drive with no engine idling. It conforms to global parking standards, reduces fuel consumption and engine wear, and adapts to truck parking rest, fleet operation and RV camping use.

1.Long-haul trucks
2.Cargo vans
3.RVs & motorhomes
4.Construction machinery
5.Farm vehicles
6.Special vehicles
7.Campers
8.Off-road vehicles
