Hidden Split Parking Air Conditioner | Fully Customizable & Compact Design-I7

1. Full-Cycle Customizable Configuration, Ultra-Large Selection Space

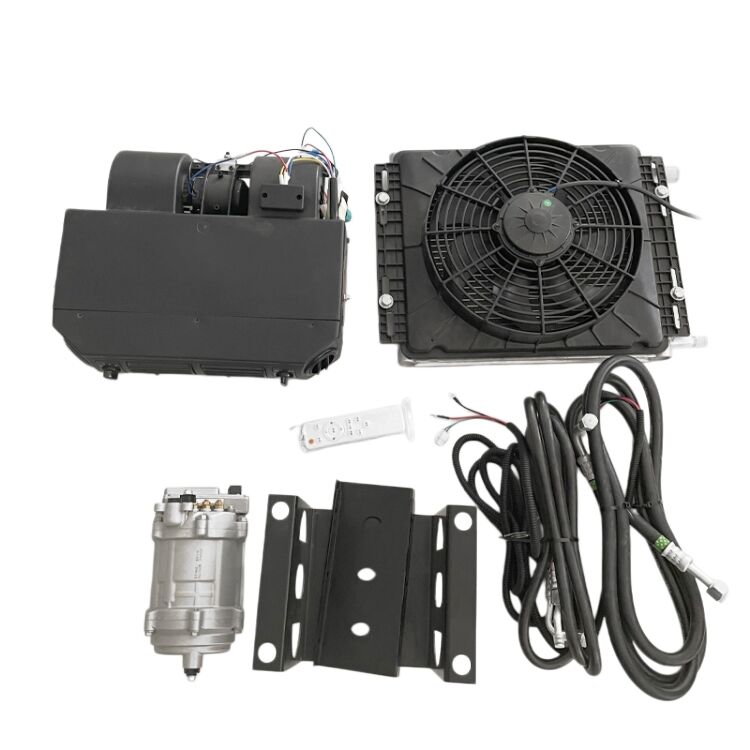

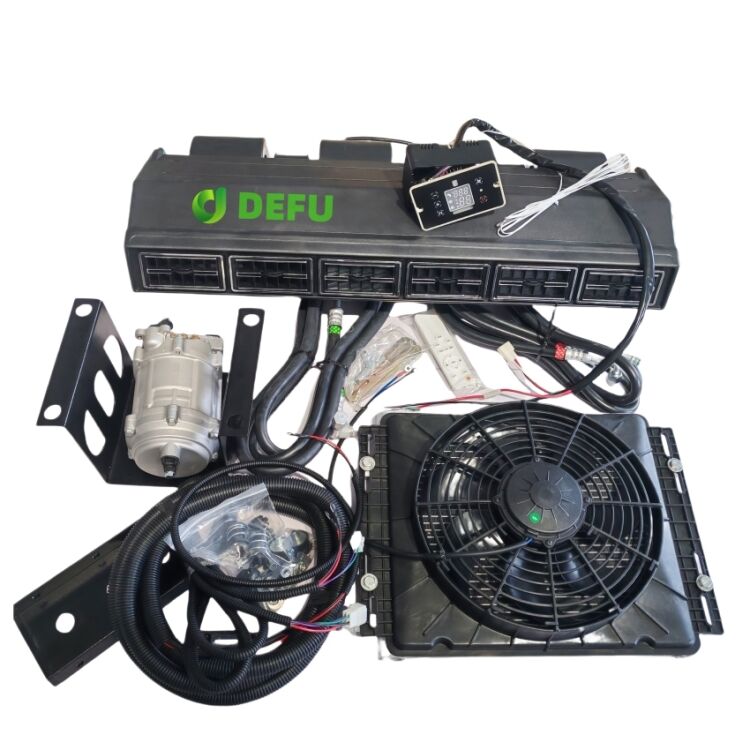

This hidden parking air conditioner adopts a fully modular design, allowing free matching of almost all core components according to vehicle conditions, installation space and user budgets. It breaks the single fixed configuration of ordinary parking air conditioners, bringing unprecedented flexibility for bulk export, personalized modification and aftermarket upgrading. All customized combinations focus on adapting to the actual installation environment of the vehicle, ensuring higher fitting accuracy and practicability.
2. Dual Compressor Options for Different Working Intensities
Customers can choose between rotary compressor and scroll compressor. The rotary compressor features compact size, low startup power and cost performance, suitable for daily light-duty parking cooling and short-time outdoor use. The scroll compressor delivers stronger compression power, more stable high-temperature operation and better continuous working performance, ideal for long-distance transportation, high-temperature areas and long-hour continuous cooling scenarios.
3. Brush & Brushless Motor Optional for Diverse Usage Needs
Dual motor solutions are available: brushed motor and brushless motor. The brushed motor features mature technology, stable startup and strong vibration resistance, adapting to complex road driving conditions. The brushless motor runs more efficiently with lower noise and longer service life, effectively reducing later maintenance frequency, perfect for users pursuing long-term high-quality operation.
4. Customizable Evaporator & Condenser Material

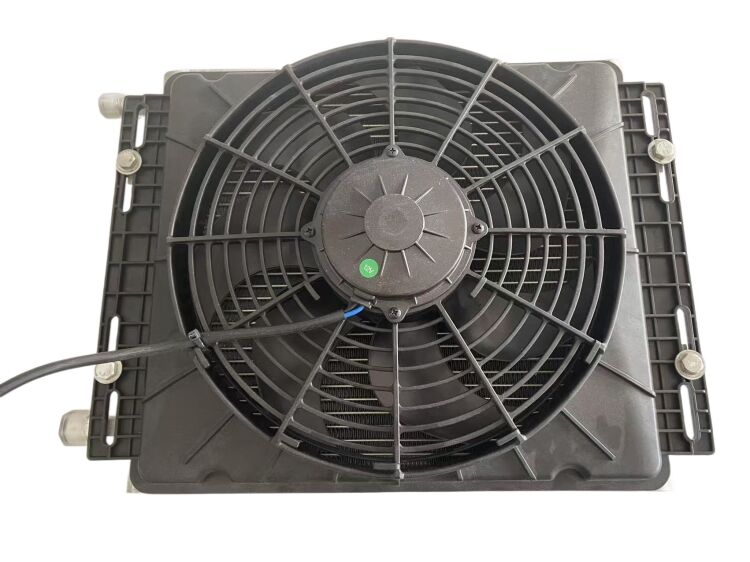

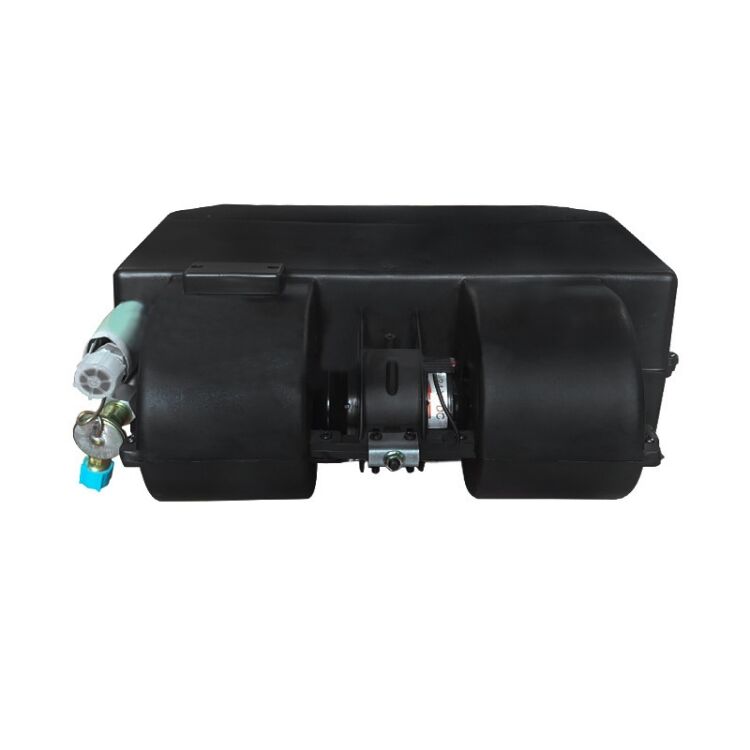

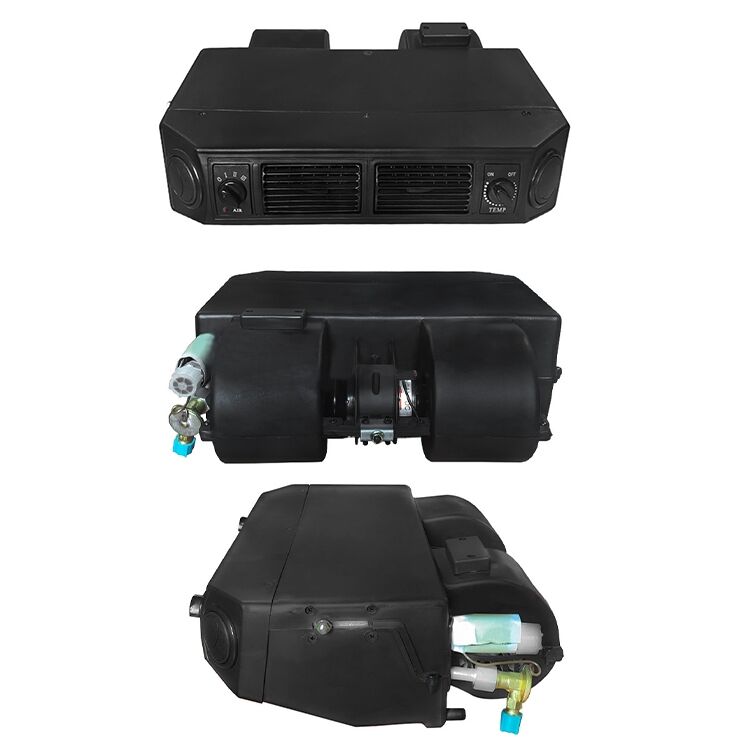

Both evaporator and condenser support dual material selection of aluminum and copper. The all-aluminum heat exchange combination is lightweight, anti-oxidant and cost-effective, suitable for conventional daily vehicles. The copper core heat exchange assembly provides better thermal conductivity, faster heat dissipation and stronger corrosion resistance, maintaining stable cooling performance in humid, dusty and high-temperature harsh environments. In addition, the evaporator appearance and overall size can be adjusted according to vehicle space constraints to achieve perfect hidden installation.
5. Ultra-Compact Hidden Installation, Make Full Use of Original Vehicle Space
With an ultra-small overall structural design, this unit does not occupy cabin living space or affect the vehicle’s exterior appearance. It can be perfectly hidden by utilizing the original vehicle pipeline gaps, chassis redundant space and reserved structural parts. It avoids destructive modification and bulky exposed units, realizing hidden installation while ensuring sufficient cooling performance, which is the optimal upgrade solution for vehicles with limited installation space.

1. Balanced Power & Cooling Efficiency for Long-Term Parking Use
Matched with scientific power and cooling parameters, all voltage versions achieve low energy consumption and high cooling output, effectively avoiding battery over-discharge, and are suitable for overnight parking and long-time outdoor standby cooling:
- 12V Version: Rated power 200–800W, cooling capacity 1800–2000W. Stable and energy-saving, perfectly matching small and medium-sized modified vehicles and light trucks.
- 24V Version: Rated power 200–800W, cooling capacity 2000–2600W. Higher cooling output, quickly reduces cabin temperature in hot summer, suitable for heavy trucks and medium-large modified vehicles.
2. 35–55dB Low Noise Comfortable Operation
Optimized with internal shock absorption and air duct optimization technology, the overall operating noise is controlled at 35–55dB. The unit runs softly and stably without harsh vibration noise. Even during all-night parking rest and long-time indoor standby, it will not interfere with rest, greatly improving driving and camping comfort.
3. Strong Environmental Adaptability & Stable Operation
Thanks to diverse customizable core configurations and optional heat exchange materials, this hidden air conditioner can be freely tailored to different climate zones and road conditions. Whether for low-temperature mild areas, high-temperature desert areas or humid coastal environments, it can match the most suitable combination scheme to ensure long-term stable cooling, strong durability and low failure rate.
4. High Compatibility & Modular Upgradeability
The fully modular design supports free combination and later partial replacement and upgrading. Different from integrated air conditioners that cannot be modified, this product allows customers to adjust compressors, motors and heat exchange components according to later usage scenario upgrades, with higher flexibility and longer product service cycle, very suitable for foreign trade bulk procurement and modified vehicle supporting projects.

This highly customizable hidden parking air conditioner is widely applicable to various vehicles with limited installation space and personalized modification needs. It is the preferred cooling solution for global modification factories and bulk purchasers:
- Various Modified Vans & Small Campers: Perfect for models with narrow ceiling and limited internal space, realizing hidden installation without destroying the original vehicle structure.
- Light & Heavy-Duty Trucks: Adapts to long-distance transportation and overnight parking rest, with customizable configurations to match different battery systems and working intensities.
- Engineering & Special Field Vehicles: Through customized copper core heat dissipation and high-load compressor configuration, it adapts to long-hour high-intensity operation in harsh outdoor environments.
- Personalized RV Refit Projects: Meets the diverse aesthetic and spatial layout needs of high-end modified vehicles, realizing invisible installation and customized cooling experience.
