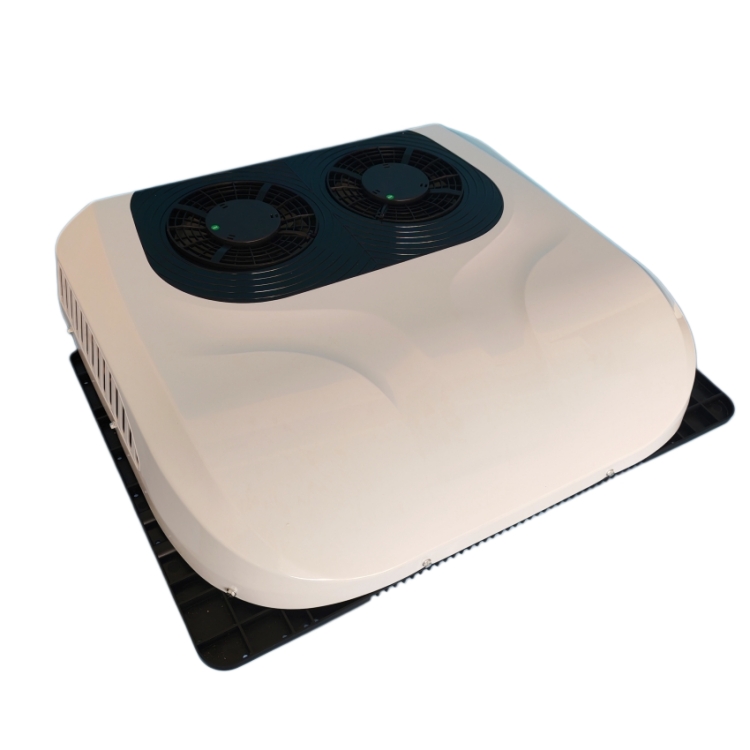

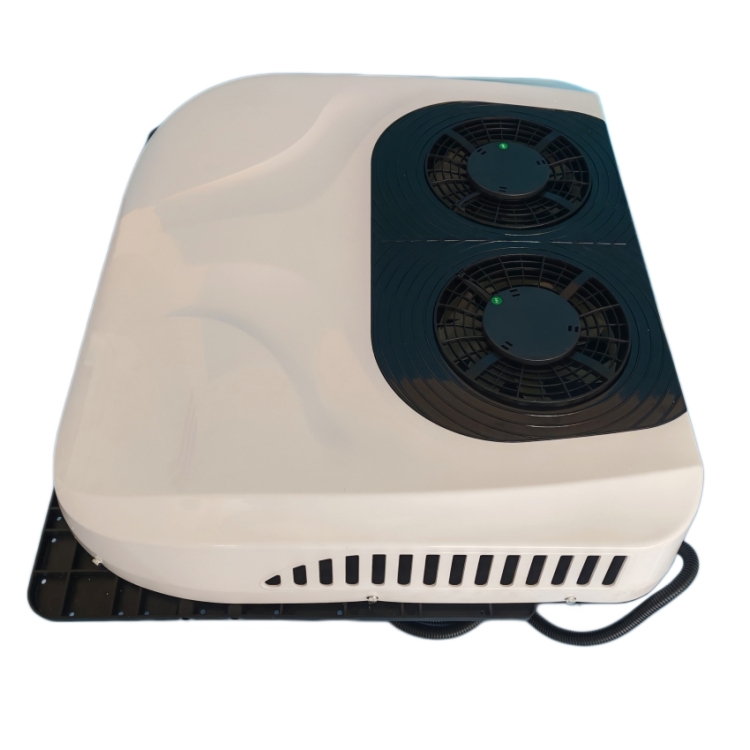

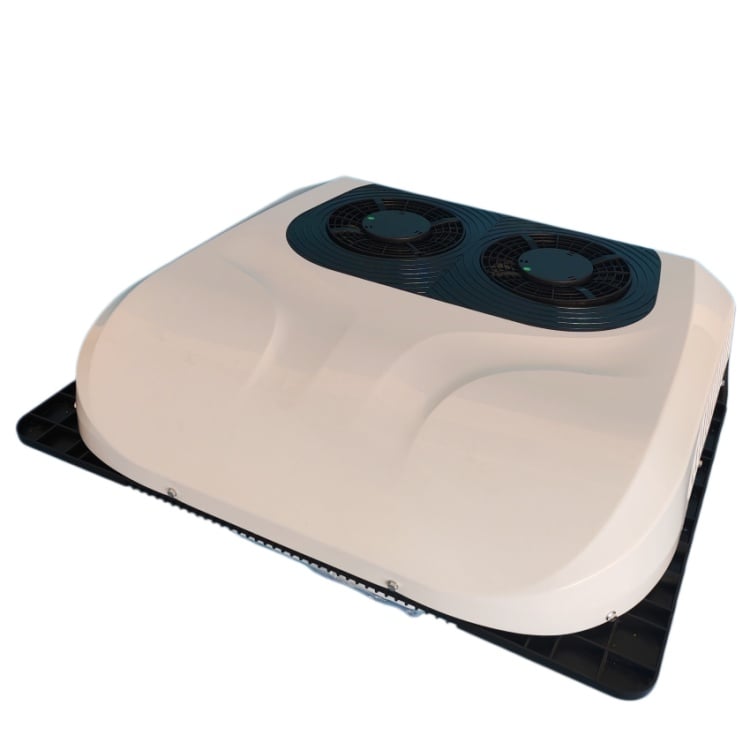

This roof top monoblock parking air conditioner features an all-in-one integrated structure, designed for plug-and-play engine-off cab cooling for commercial vehicles and engineering machinery. Unlike split-type units, this integrated rooftop design simplifies installation with no complicated pipeline layout, ensuring neat exterior integration with the original vehicle. Supporting multi-voltage compatibility and flexible core component configuration, it allows optional compressors, motors and customizable evaporator materials to adapt to different working environments and cooling demands. Equipped with a standard high-efficiency aluminum condenser, the unit delivers stable, high-performance cooling with compact integration, making it an ideal universal cooling solution for global aftermarket and OEM vehicle matching.
Place of Origin: |
China |
Brand Name: |
DEFU/BEDIRPH/MAXYCOL/MAXYNO |
Model Number: |
DR6 |
Certification: |
CE/EMC/MSDS |
Minimum Order Quantity: |
10 PCS/SETS |
Price: |
Negotiable |
Packaging Details: |
103*89*41cm, 36kg |
Delivery Time: |
15-20 business days |
Payment Terms: |
30% of total as front payment, balance before shipment |
Supply Ability: |
10,000 sets per month |
Meta Description: Still using water-based swamp coolers (climatizadores)? Discover why B2B truck accessory distributors are replacing them with 100% DC compressor parking ACs.
For decades, the standard climate control solution in Brazilian heavy trucks has been the "climatizador" — a water-evaporative swamp cooler. While cheap and simple, its performance is severely limited. As summer temperatures in regions like Mato Grosso and Bahia push past 40°C with high humidity, truck drivers and fleet owners are demanding a real cooling solution.
For B2B importers, accessory distributors, and wholesalers looking to capture market share, the transition to ar condicionado elétrico substitui climatizador (electric AC replacing swamp coolers) represents the single largest product upgrade opportunity in the automotive aftermarket today.
To understand why fleets are willing to pay a premium for compressor-based systems, we must analyze the technology:
Evaporative Climatizadores (Swamp Coolers):
1. These units blow ambient air over a wet pad. In humid tropical environments (like coastal Brazil), evaporative cooling fails because the air is already saturated with water. They blow warm, damp air that makes sleeping cabins feel like a sauna.
Compressor Parking Air Conditioners:
2. Utilizing a sealed, gas-charged refrigerant loop (R134a) powered by a brushless DC compressor, these systems actively lower the temperature and extract moisture from the cabin air. It is a
resfriamento real por compressor para caminhão
(real compressor-based cooling for trucks), matching the comfort of a household split air conditioner.
[Climatizador / Evaporative] ---> Blows humid, warm air when ambient humidity is high.
[DEFU Compressor DC AC] ---> Uses R134a refrigerant to actively lower cabin temp & dehumidify.

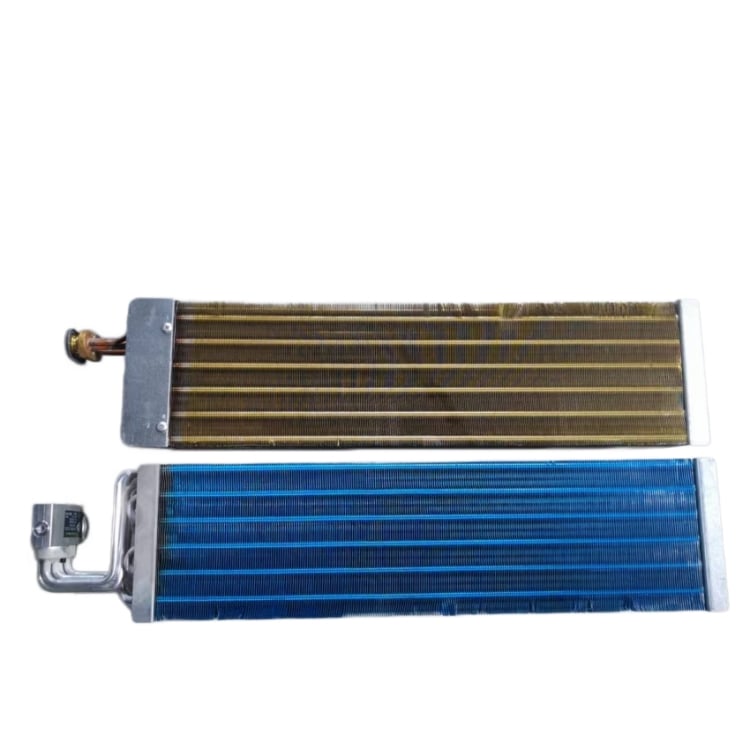

1. Customizable Copper & Aluminum Evaporator (Core Customization)
To accommodate diverse global climate conditions and working intensities, the evaporator supports full customization of copper and aluminum materials. The aluminum evaporator offers fast heat exchange efficiency, lightweight performance and cost effectiveness, perfectly fitting regular daily transportation and mild working environments. The copper evaporator provides stronger anti-corrosion, anti-oxidation and pressure-resistant properties, maintaining stable heat exchange performance for a long service life in dusty, humid and high-temperature harsh scenarios. Matched with a standard aluminum condenser, the whole heat dissipation system achieves balanced and efficient refrigeration output in all conditions.
2. Dual Compressor & Dual Motor Optional Configuration
The unit supports flexible selection of core drive components to match different operational requirements. Customers can choose a scroll compressor for high compression efficiency, stable output and continuous heavy-duty operation, or a rotor compressor for energy-saving performance and cost-effective daily use. Both brushed and brushless motor options are available. Brushed motors deliver stable startup and vibration resistance, while brushless motors reduce mechanical wear, lower failure rates and extend the overall service life of the air conditioner.
3. Multi-Voltage Universal Adaptability
Designed with wide voltage compatibility covering 12V and 24V vehicle power systems, this monoblock rooftop AC fits most trucks, engineering machinery and commercial vehicles worldwide. The universal voltage configuration greatly improves product versatility, meeting various regional market standards and vehicle matching requirements.
4. Integrated Rooftop All-in-One Structure
Adopting a classic roof-top monoblock design, the entire unit integrates all cooling components in one compact housing. It does not occupy cab interior space and maintains the original vehicle aesthetics. The simplified structure reduces installation difficulty and later maintenance costs, suitable for both new vehicle assembly and old vehicle retrofitting.
|
SNA-DR6 |
||
|
Rated Voltage |
12V |
24V |
|
Rated Current |
40-55A |
35-45A |
|
Rated Power |
400-720W |
400-960W |
|
Rated Cooling Capacity |
1800W-2000W |
2000W-3000W |
|
Noise level |
50-60dB |
|
|
Air flow |
150-450 m³mc/h |
|
|
Refrigerant |
R134a,580+30g Prefilled |
|
|

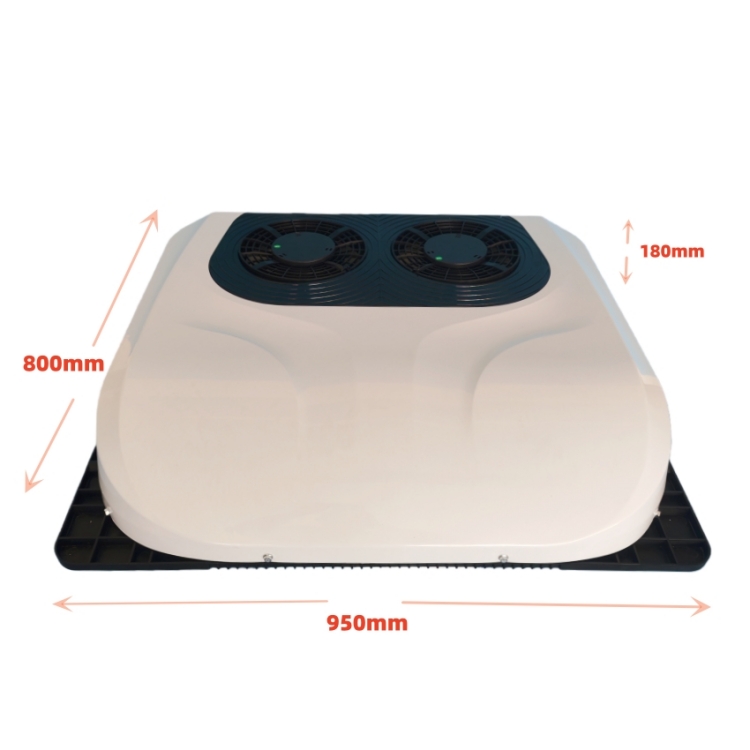

Outdoor/indoorsize |
950*800*180mm/350*350*135mm |
|
|
Decoration board size |
780*530mm |
|
|
Compressor speed |
3000-4000rpm |
|
|
Fan motors |
Brush/brushless motors for option |
|
|

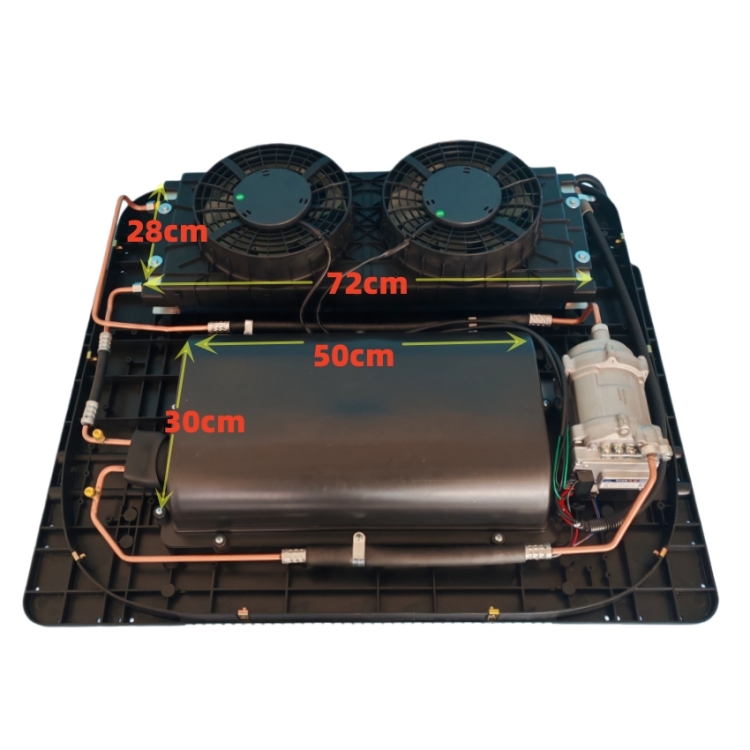

Condenser size |
Aluminum/copper,580*360mm |
|
|
Evaporator size |
Aluminum/Copper optional, 520*320mm |
|
|
Package |
103*89*41cm, 36kg |
|
1. Balanced Power & Efficient Cooling Output
Optimized internal structure and core component matching enable stable and efficient refrigeration with reasonable power consumption. The 12V version achieves reliable cooling capacity within a moderate power range, while the 24V model delivers upgraded cooling performance to cope with higher temperature environments. With scientific power matching, the unit avoids excessive battery load while ensuring fast and uniform cab cooling, realizing perfect balance between energy conservation and cooling efficiency.
2. Durable & Stable Operation for Complex Scenarios
Benefiting from optional high-quality evaporator materials and industrial-grade core components, the air conditioner features excellent vibration resistance and high-temperature resistance. It maintains consistent cooling performance during long-hour continuous operation, with no obvious heat exchange attenuation under bumpy driving and high-temperature outdoor conditions.
3. Low Failure Rate & Easy Maintenance
The integrated monoblock structure reduces intermediate pipeline failure points. With optional high-reliability motors and compressors, the whole system operates steadily with lower daily maintenance difficulty. It is highly adaptable to long-term commercial use and complex field working scenarios.
4. High Universality for Global Vehicle Matching
Combining multi-voltage compatibility, diversified core configurations and customizable heat exchange components, this rooftop parking air conditioner supports personalized matching for different vehicle models and regional environments. It serves as a universal engine-off cooling solution for trucks, engineering vehicles and various commercial vehicles across global markets.
1.Recreational Vehicles (RVs) & Motorhomes
Provides battery-powered cooling during parking or stationary periods without engine operation.
2.Heavy-Duty Trucks & Tractors
Delivers efficient cabin cooling for drivers during rest breaks in sleeper cabs using 12V/24V vehicle batteries.
3.Off-Grid Vehicle Cooling
Supports extended outdoor stays (e.g., camping, remote work) where grid power is unavailable.
As a professional distributor, shifting your inventory from traditional water-coolers to a high-efficiency ar condicionado elétrico sem água (water-free electric air conditioner) protects your profit margins and satisfies high-end fleet accounts.
No Water Tank, No Leaks:
climatizadores
require an external water tank mounted behind the cab. This tank requires frequent refilling, is prone to freezing or leaking, and degrades the vehicle's aerodynamics.
Superior Profit Margins:
aparelho de ar condicionado automotivo 24V
(24V automotive AC equipment) carries a higher average order value (AOV) and better dealer margins than low-cost evaporative units.
True All-Weather Performance:
For importers aiming to importar ar condicionado da China (import air conditioners from China), DEFU is the ultimate manufacturing partner. We specialize in producing robust, heavy-duty automotive air conditioning systems designed for extreme climates.
Our units are engineered for seamless aftermarket distribution, featuring universal wiring harnesses, pre-charged eco-friendly refrigerant, and detailed Portuguese installation manuals.
Ready to supply your dealer network with the best ar condicionado elétrico para caminhão?
